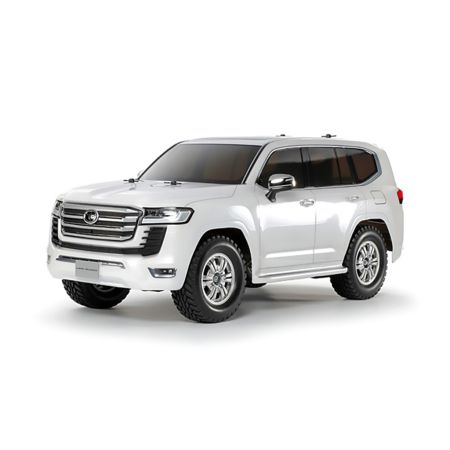

Tamiya Toyota Land Cruiser 300 CC-02 (THC58688)

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille's horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on the roof are rendered by separate parts for more realism. Silver colour 12-spoke wheels are paired with block pattern tyres.

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with silver colour twelve-spoke wheels and grippy block pattern tyres.

About The Model

• Length: 472mm, width: 200mm, height: 192mm
• Wheelbase: 267mm
• Tread: 160mm (front), 163mm (rear)
• Tyre width/diameter: 33/90mm (front & rear)
• Ladder frame
• Longitudinal motor, shaft-driven 4WD
• 3-bevel differential gears
• 4-link rigid suspension (front & rear) & CVA oil dampers
• Gear ratio = 17.33:1 (using kit-standard 16T pinion)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately

Required To Complete

2 Channel Radio System, 1 Servo's, ESC, Battery & Charger, Paint for the Body
