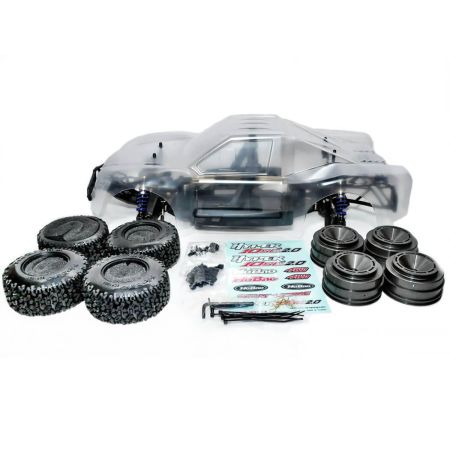

Hobao Hyper 10SC 2.0 Electric Truck ARR with Clear Body (HB-SC2E)

Features

• All Metal Parts CNC Machined.
• Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.
• Center Top Brace
• Wire pass through.
• Quick Release.

Drive:
- Central: Single Ø4mm Hardened steel center driveshaft.
- Optional  Aluminum center driveshaft HOP1-0083.
- Front wheel: CVA axles, Ø3.2mm Hardened steel.
- Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
- Optional rear wheel CVA axles HOP1-0082.

Differentials:
- Center differential is directly connected to rear differential.
- Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
- Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
- Center Spur Gear: 40T (MOD 1).
- Motor Gear:13T (MOD 1).
- Front differential filled with 20K silicone oil.
- Center differential filled with 9K silicone oil.
- Rear differential filled with 5K silicone oil.

Shocks:
- Filled with front 700 silicone oil and rear 600 silicone oil.
- Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.

Spring:

- Front: 0.86kg/cm, L=50mm, Blue.
- Rear: 064kg/cm, L=65mm, Blue.
- Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
- Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
- Shock Tower: 3mm CNC aluminium.
- Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071.

Suspension:

- Front PBS.
- New design steering block with enlarged pivot ball and alum steering arms.
- Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.
- New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).
- Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
- Front & rear anti-roll bars.
- New Alum front and rear arm holder.
- Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles.

Steering:

• New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
• Ball bearing equipped with servo saver.
• Strengthen center body shell frame.
• Motor Mount:

• CNC aluminium laydown motor mount.
• Fitting for motors with size below 38mm.
• Spur gear cover.

Tyres:
- 2.2″/3.0″ Short Course Tyres.

Wheel Hex Hub:
- Front 12mm wheel hex hubs , Plastic.
- Rear 12mm wheel hex hubs, +1mm , Plastic.
- Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076.

Wheels:
- 2.2″/3.0, 12mm H40127.
- Optional 5-Spoke Wheels. H11034.

Ball Bearings:
- Full set included.

Caster:
- Adjustable.

Camber:
- Adjustable.

Specifications
Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g

Required To Complete

• Radio 2 channel.
• ESC & Motor.
• High-torque steering servo.
• Glue for tyre.
• Paint for body.
